Isostatic Pressing Graphite


Isostatic pressed graphite is a new type of graphite material developed in the 1960s. It has the advantages of large molding size, uniform billet structure, high density, high strength, isotropy (characteristics independent of size, shape and sampling direction), so isostatic pressed graphite is also called "isotropic" graphite. Because it has a series of excellent characteristics, so that it is closely linked with today's high and new technology, national defense cutting-edge technology, is the manufacturing of monocrystal silicon furnace, metal continuous casting graphite crystallizer and electric discharge processing graphite electrode and other irreplaceable materials, but also the manufacturing of rocket ignition pole, excitation pole, nozzle and rudder plate and graphite nuclear reactor deceleration material and reflection material, excellent material. At the same time can not be replaced by other lower quality graphite products.



Basic concept of isostatic pressed graphite



Special graphite material refers to the carbon mass fraction of more than 99.99% graphite, also known as "three high graphite" (high strength, high density, high purity), belongs to the new carbon material. According to different fields of application or different technological properties, it can be divided into isostatic graphite and molded graphite, which adopt different forming methods. Among them, when molding, the direction perpendicular to the pressure surface and the direction horizontal in the pressure surface stress is different, resulting in different performance, so the molded graphite has the characteristics of "anisotropy"; When isostatic pressing is formed, the force on all sides of the product is uniform, and the volume density is uniform, so isostatic pressing graphite has the characteristics of "isotropy".



Isostatic pressure means that equal pressure is applied to the sealed material in all directions at the same time. Isostatic press molding is the material to be pressurized after being sealed in a high pressure container, using the incompressible nature of the liquid medium and the property of uniform pressure transfer from all directions to the material for uniform pressure, when the liquid medium through the pressure pump into the pressure vessel, according to the principle of fluid mechanics, the pressure is constant and evenly transferred to all directions. So the pressure on the powder in the high-pressure vessel is uniform and uniform in all directions. The method of using the above method to compact the powder into a blank body is called isostatic pressing. Isostatic pressing graphite materials have the characteristics of isotropy, and the characteristics of the material have nothing to do with the size, shape and sampling direction.



It is impossible to prepare carbon products with large size and fine structure by moulding. To a certain extent, isostatic pressing can overcome the disadvantage of uneven volume density caused by molding, greatly reduce the probability of product cracking, and make the production of large size fine structure products become a reality. At the same time, the isostatic pressing process, generally do not need to add lubricant in the powder, which not only reduces the pollution of the products, but also simplifies the manufacturing process.

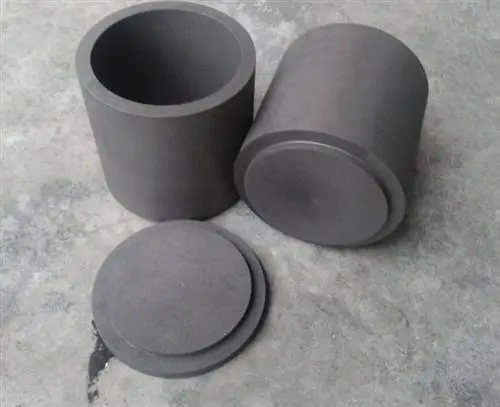

isostatic pressing graphite.png

Jiangsu High Industry on the research and development and production of high-performance polyurethane isostatic pressing molds. Through in-depth cooperation with many isostatic pressing equipment manufacturers and in-depth study of the industry, the developed isostatic pressing polyurethane mold series products have the characteristics of long service life, high precision, small deformation, easy demoulding, etc., and are widely used in ceramics, etc. Static pressing mould, cemented carbide isostatic pressing mould, rare earth permanent magnet material isostatic pressing mould, graphite isostatic pressing mould, etc.

cip bags, iso bags, cip mold, iso mold, cold isostatic pressing bags and mold, cold isopressing mold and bags (56).jpg

cip bags, iso bags, cip mold, iso mold, cold isostatic pressing bags and mold, cold isopressing mold and bags (224).jpg

CIP bags, ISO bags, cold isostatic pressing bags, isopresing bags, CIP molding (4).JPG


We support all kinds of customization, if you need it, please contact us.
